V6calibra :
part numbers





part no
item
notes
  90412126

Top Inlet manifold gasket (required for spark plug change)

--
91132006

Standard Spark Plugs (twin electrode)

--
BKR6EIX
6418

Iridium Spark Plugs (single pin electrode)

--


Throttle body gasket / Traction control motor gasket (need two of these)

--
25164435

Fuel Filter

5


Oil Filter

4
  11023582

Oil sump plug seal

50p
  90409376

Oil sump plug bolt

4


 Stock Air Filter

6
  90486282

Cabin Pollen filter

~ 10

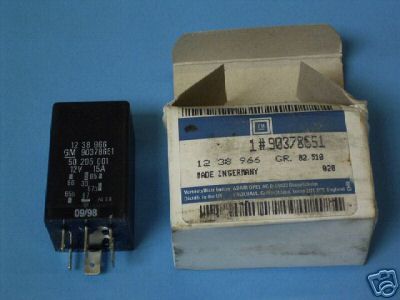

90378651

Fuel Pump Relay
(behind drivers footwell kick panel)

--
n/a
Lenk V6 Strut Brace
http://www.lenktuning.de
??
90355565
side bump strip holder clips
8 (pk 10)
90355688
door check arm
25
90346767
11011616
11080401
11065575


required for above
screw
(shouldered)
washer
screw
nut

0.50
90510147


V6
lambda / oxygen sensor
(all years, both C25XE and X25XE engines)
Bosch part no: 258003300
use:
http://www.lambdasensor.com/

66

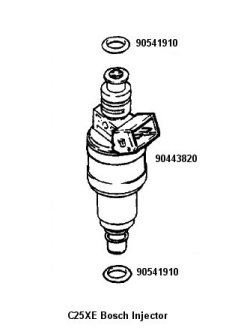

90443820
V6 Injectors : Bosch type
0-280-150-428
also used in Saab V6 engines
??
90410865
V6 Traction Control Motor/Solenoid
450 + VAT
11087871
Cam belt cover bolts - torx head
40p ea
93181720
Auxiliary ribbed V belt (shown with tensioner) 2020mm - V6 with aircon
~ 32

Auxiliary ribbed V belt tensioner
40
N/A
Twin Cog Sunroof Motor (96 >)
no longer available
--
90467398
Carbon Canister
Located up in drivers side front wheel arch, behind arch cover.
40
90541828
gasket
V6 Calibra crankcase ventilation unit.
When removing for cleaning purposes use new gasket
3
90499355
V6 Calibra short vacuum pipe which runs between fuel pressure regulator and underside of throttle body
--
90339414
Radiator Temp switch in radiator (V6's with air con)
--


Radiator Temp switch in coolant bridge (V6's with air con)

--
90510183

Coolant Temp Sensor for ECU located in coolant bridge (has blue coloured connector)

--
3439088
Coolant Temp sender for dash gauge (single wire) - located in coolant bridge
--
  90532627

Stronger headlight relay
introduced in Feb 1997

--
90511177

V6 Knock Sensor - same part for front  and back cylinder blocks

--
