FUSES AND RELAYS
|
|
|
|
FUSES AND RELAYS
|
|

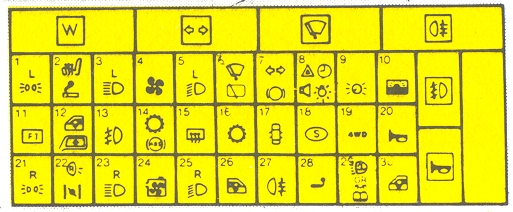

V6 Calibra Fuse List
based on late '96 - '98 spec with air conF1 10A Parking and tail lamps, left F2 20A Cigarette lighter F3 10A Main beam, left F4 30A empty on V6- reserved for main radiator fan on other models F5 10A Dipped beam, left F6 30A Windshield wipers, horn F7 15A Turn signal lamps, brake lamps, ABS F8 15A Courtesy lamp, luggage compartment lamp, hazard warning flashers, clock, radio F9 10A Instrument illumination license plate lamp F10 30A Sun roof F11 20A Fuel pump F12 10A Electrically adjustable exterior mirror, electrically operated door windows F13 20A Fog lamps, front F14 10A ABS (+ auto transmission) F15 30A Heated rear window F16 10A Automatic transmission (*optional) F17 20A Central door locking system F18 10A empty on V6 - reserved for daytime driving lamps (Sweden) F19 10A empty on V6 - reserved for four wheel drive (2.0 16v only) F20 10A CD + Radio F21 10A Parking and tail lamps, right F22 10A Reverse lamps F23 10A Main beam, right F24 30A empty on V6 - reserved for cooling fan F25 10A Dipped beam, right F26 - spare F27 10A Fog lamp, rear F28 20A Terminal 30: constant current for caravan / trailer tow hitch option F29 10A Headlamp washer system - early V6's only F30 30A Electrically operated door windows
Relays
|
Unit Designation F = fuses K = relays or other |
Description - Location |
| F34 | Auxiliary Fan - Engine Compartment Relay Frame |
| F38 | Anti Theft Warning System & Horn - Relay Frame behind interior fuse box |
| F40 | Main Fan - Engine Compartment Relay Frame |
| F42 | Main Fan Speed Mode 2 - Engine Compartment Relay Frame |
| F46 | Interior Blower Fan - Engine Compartment Relay Frame |
| F47 | Air Con - Engine Compartment Relay Frame |
| F48 | Traction Control - Engine Compartment Relay Frame |
| F49 | Secondary Air Injection System Pump - Engine Compartment Relay Frame |
| H19 | Lights on Warning Buzzer - Interior Fuse Box |
| K1 | Front Fog lamps - Interior Fuse Box |
| K3 | Anti Theft Warning System Starter - Relay Frame behind interior fuse box |
| K5 | Windscreen Wipers - Interior Fuse Box |
| K6 | Air Con - Relay Frame behind interior fuse box |
| K7 | Auxiliary Fan Speed Mode 4 - Relay Frame behind interior fuse box |
| K8 | Indicators - Interior Fuse Box |
| K9 | Headlight Washer (early V6's only) - Relay Frame behind interior fuse box |
| K10/K63 | Horns (Fanfare) - Interior Fuse Box |
| K12 | Secondary Air Injection System pump - Engine Compartment Relay Frame |
| K22 | Electric Secondary Water Pump Run On - Engine Compartment Relay Frame |
| K26 | Main Fan - Engine Compartment Relay Frame |
| K27 | Main Fan - Engine Compartment Relay Frame |
| K30 | Rear Wiper - Relay Frame behind interior fuse box |
| K35 | Wing Mirror Heating elements - Relay Frame behind interior fuse box |
| K51 | Main Fan Speed Mode 2 - Engine Compartment Relay Frame |
| K52 | Auxiliary Fan - Engine Compartment Relay Frame |
| K58 | Fuel Pump Relay - Behind drivers footwell kick panel |
| K60 | Air Con Compressor - Relay Frame behind interior fuse box |
| K62 | Dipped driving lights - Relay Frame behind interior fuse box |
| K73 | High beam driving lights - Relay Frame behind interior fuse box |
| K87 | Auxiliary Fan - Engine Compartment Relay Frame |
| K89 | Rear fog lights - Interior Fuse Box |
| K90 | Air Con Compressor - Relay Frame behind interior fuse box |
